| Skylight Measuring Guides – Domes, Diffusers, Shafts & Surrounds

Measuring a skylight correctly is essential when replacing domes, diffusers, shafts, or flashing components. While many skylight parts appear similar in size, small differences in throat width, edge profiles, fixing methods, and roof openings can affect compatibility. This guide brings together clear, component-specific measuring instructions to help identify the correct replacement parts across common Australian skylight systems.

Each section below explains how to measure a specific skylight component, including what dimensions matter most and which reference points are used when matching replacement parts. These guides are designed to support accurate selection without needing to remove more components than necessary.

How to Measure a Skylight Dome

The correct replacement skylight dome size is determined by the relationship between the dome’s external size and the skylight base opening (often called the throat). Measuring both helps ensure the new dome fully covers the opening and aligns correctly with the existing base and flashing.

Follow the steps below to identify the correct dome size for your skylight.

Step 1: Remove the existing dome

Carefully detach the dome from the skylight base or flashing. Domes are typically secured with screws or pop rivets. Removing the dome allows accurate measurement of both the dome itself and the roof opening beneath.

Step 2: Measure the dome (edge to edge)

Measure the dome at its widest external points:

• Round domes: Measure straight across the widest point (diameter).
• Square or rectangular domes: Measure from one outer edge to the opposite outer edge.

This measurement represents the overall dome size used to match replacement domes (for example, 420mm).

Step 3: Measure the skylight throat (roof opening)

Measure across the roof opening that the dome covers. This opening is commonly referred to as the throat or nominal size (for example, 400mm).

The throat measurement is useful when:
• The dome is damaged or missing
• Multiple skylight components are being replaced
• The original dome size cannot be confirmed

The throat size corresponds to the skylight base and helps determine compatible shaft and diffuser sizes when replacing multiple components.

Important sizing note

All replacement skylight domes listed on the Skybrite Skylights website are specified by their edge-to-edge dome measurement, not by the throat size. The dome size must fully cover the skylight base opening to ensure proper weather protection and fit.

How to Measure a Skylight Diffuser

Replacing a skylight diffuser starts with identifying the diffuser style, size, and how it connects to the ceiling insert. Because diffuser designs vary by skylight brand and era, measuring accurately helps ensure the replacement diffuser fits securely and maintains the intended light distribution.

Follow the steps below to determine the correct diffuser size and type.

Step 1: Identify the diffuser style

Skylight diffusers are commonly available in three styles:

• Flat diffusers sit flush with the ceiling surface
• Domed diffusers have a raised profile below the ceiling line
• Vented diffusers incorporate ventilation openings

Identifying the style helps narrow compatibility and ensures the replacement diffuser matches the original ceiling finish and function.

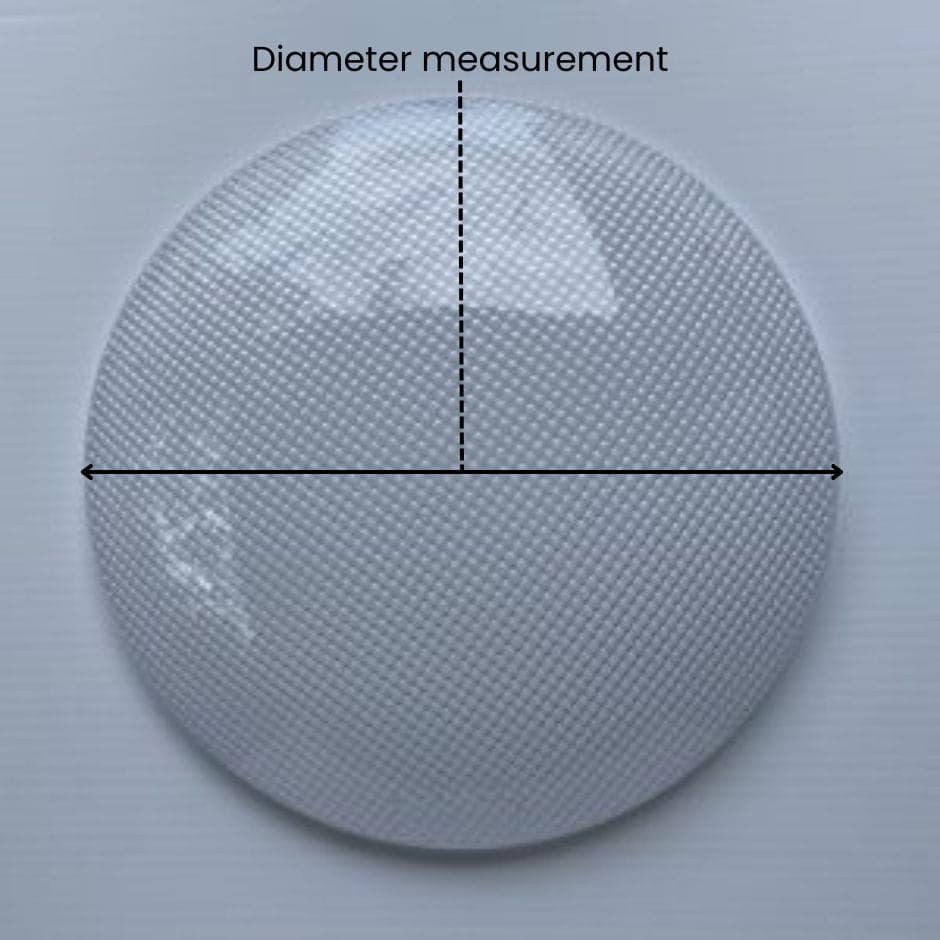

Step 2: Measure the diffuser size

Measure across the widest external point of the diffuser:

• For round diffusers, measure the diameter
• For square or rectangular diffusers, measure across the face

If the diffuser is cracked, missing, or distorted, measure the ceiling insert opening instead. This provides a reliable reference for selecting a compatible diffuser size.

Step 3: Check the diffuser material and finish

Diffusers are commonly manufactured in:

• Prismatic acrylic (textured to scatter light)
• Frosted / opal acrylic (softer light diffusion)

Matching the finish helps maintain consistent light quality and appearance across rooms, especially when replacing only one diffuser in a home.

Step 4: Confirm how the diffuser fixes into place

Diffusers attach to ceiling inserts using different fixing methods. Check whether your diffuser:

• Twists and locks into the insert
• Rests on an inner lip or ledge
• Clips into a frame or ring

The fixing style affects compatibility between the diffuser and ceiling insert.

When an exact diffuser replacement is unavailable

Some diffuser profiles or older skylight systems may no longer be manufactured. In these situations:

• A compatible diffuser of the same size and fixing style may be suitable
• Alternatively, upgrading both the ceiling insert and diffuser to a current system can provide a clean, consistent finish

This approach is often used when older diffuser designs are discontinued or when parts from different systems have been mixed over time.

How to Measure a Skylight Shaft

Skylight shafts connect the roof opening to the ceiling diffuser and play a major role in both fit and light output. Accurate measurement ensures the shaft fits the skylight base correctly and aligns cleanly with the ceiling opening.

Step 1 – Measure the skylight base opening (roof level)

Remove the existing dome and measure the diameter (or width and length for rectangular units) of the skylight base opening.
This measurement determines the shaft size required.

If roof access is not possible, the shaft size can usually be estimated by measuring the ceiling opening after removing the diffuser and surround.

Step 2 – Measure the ceiling opening

Remove the diffuser and measure the internal opening at ceiling level.
This measurement should match the shaft size when the system is correctly matched.

Step 3 – Measure the shaft drop (length)

Measure the distance from the skylight base down to the ceiling opening.
This determines the required shaft drop length.

Accurate drop measurement ensures the shaft reaches the ceiling cleanly without compression or misalignment.

Step 4 – Shaft alignment and light performance

A shaft that is pulled straight and tight from roof to ceiling improves light transmission.
Additionally, shafts with fewer bends and twists deliver higher light output.
Straight runs with smooth internal surfaces provide the best brightness performance.

How to Measure a Skylight Surround

Skylight surrounds form the visible trim at ceiling level and are matched to both the diffuser model and shaft size. Measuring accurately ensures the surround sits flush and aligns correctly with the ceiling opening.

Step 1 – Identify the diffuser model

Start by identifying the diffuser type fitted to the skylight.
Surrounds are designed to suit specific diffuser models and profiles, so confirming the diffuser style helps narrow the correct surround type.

Step 2 – Measure the ceiling opening

Measure the overall diameter of the ceiling opening for round surrounds.
For square surrounds, measure edge-to-edge across the opening.

This measurement provides the primary sizing reference for selecting the correct surround.

Step 3 – Measure the surround insert (upstand)

Measure the upstand section of the surround that inserts into the ceiling opening.
This dimension often corresponds closely with the shaft size and helps confirm compatibility between the surround and shaft.

Step 4 – Confirm overall fit

While flange width and internal lip depth can vary between models, the most important measurements are:

• Overall diameter or edge-to-edge size

• Upstand (insert) size

These two measurements are usually sufficient to identify the correct replacement surround size.

Note:

In some cases, after many years the ceiling surround can turn yellow, which is often mistaken for the skylight diffuser.

If the ceiling frame itself has discoloured, replacing the surround can restore the skylight to its original appearance.

View the yellow skylight fix.
